Networks¶

Every zPod is deployed with four networks: the management network and three routed /26 networks. You can add your own VLAN networks to a zPod. Each one gets its own subnet, served by the zPod's zcore.

You can manage networks from the CLI (zcli zpod network, below) or from the Networks card on the zPod detail page in zpodweb. See In zpodweb for what it looks like.

Concepts¶

• Kind: every network on zcore has one of three kinds.
  • zpod: the four networks created at deploy time (mgmt, vlan64, vlan128, vlan192). They are routed globally and cannot be changed.
  • zcore: VLANs 10, 20 and 30 (172.16.10/20/30.0/24). The zcore image configures them for nested VCF. They are read live from zcore and cannot be changed.
  • user: the networks you add.
• VLAN: the tagged VLAN id the network uses on the zPod's trunk. Pick any id from 1 to 4094 that is not already used on the zPod.
• Gateway: the address zcore takes on that VLAN, with its prefix. For example, 10.42.111.1/24 means the network is 10.42.111.0/24 and zcore is 10.42.111.1.
• Routing: local (the default) keeps the network inside the zPod. global advertises it to the NSX fabric, and only superadmins can set it.
• Masquerade: lets VMs on the network reach outside the zPod. Traffic leaves with zcore's address as its source. Nothing outside the zPod can reach those VMs. It is off by default.
• Status: read live from zcore on each list. ACTIVE means the interface is up, DISABLED means it was turned off, MISSING means zcore no longer has it, UNKNOWN means zcore cannot be reached, and PENDING means a routing change is running.

Permissions¶

List networks¶

❯ zcli zpod network list zpod_name

The table shows name, VLAN, CIDR, gateway, kind, masquerade, routing and the live status. GLOBAL routing is shown in orange because the network is reachable from the whole fabric.

❯ zcli zpod network list zpod_name -k user

zcli zpod info <zpod_name> also reads each network's VLAN, gateway and routing from the API. Its static routes panel lists the global networks, and the zcore box shows every interface, user VLANs included (-f n):

Add a network¶

❯ zcli zpod network add zpod_name --name wld01 --vlan 1000 --gateway 10.42.111.1/24

If the request is refused, nothing is created. The API checks that:

• the VLAN id and the name are not already used on the zPod (409);
• the subnet does not overlap any of the zPod's networks or the endpoint's zPod pool (422);
• the VLAN id is not reserved by zcore (403).

Remove a network¶

❯ zcli zpod network remove zpod_name wld01

Removing a network deletes its VLAN interface and subnet on zcore. Add -y to skip the confirmation. Removal is refused (409) while:

• the network is routed global: set it back to local first;
• a routing change is running;
• zPod DNS records still point into the subnet: delete them first with zcli zpod dns remove.

Masquerade¶

❯ zcli zpod network masquerade on zpod_name wld01
❯ zcli zpod network masquerade off zpod_name wld01

With masquerade on, VMs on the network can reach the factory network and anything it reaches. With it off, the network has no egress and stays inside the zPod. Masquerade cannot be turned on for a global network (409), because a global network is already reachable without translation.

Enable and disable¶

❯ zcli zpod network disable zpod_name wld01
❯ zcli zpod network enable zpod_name wld01

These commands bring the VLAN interface down or up on zcore. The change does not survive a zcore reboot. Disabling a global network blackholes its subnet in the fabric, which can be useful for a failure test.

Routing: advertise to the fabric¶

A new network is local: it lives only inside the zPod. Its VMs can reach out through masquerade, but nothing outside the zPod can reach them, since the NSX fabric has no route to the subnet. That is enough for most labs.

Advertise a network (global) when something outside the zPod must reach the VMs on it directly, by their own IPs. For example: a VCF workload domain on wld01 that a jump host, another zPod or the corporate network must reach, or a replication or backup target that a second zPod connects to. zPodFactory then adds a T1 static route to the subnet, through zcore, and the fabric routes it like any zPod network.

Only superadmins can change routing, because an advertised subnet becomes part of the whole lab's routing. As a zPod owner, ask a superadmin to advertise the network for you. Each change runs as an audited zPod Engine flow, named advertise <zpod>/<network> by <user> or withdraw …. The network shows PENDING while the flow runs. By default the command follows the run and prints the verdict. On success it prints the final routing and masquerade state. On failure it prints the failing check in red and exits with code 1.

The captures below use a throwaway test network, DOCNET, on the zPod qa-storage.

1. Check first, with a dry run¶

Before advertising anything, run the same checks without changing the fabric. This tells you whether the subnet clashes with anything the lab already routes, so you can pick another subnet before anyone depends on it:

❯ zcli zpod network routing zpod_name wld01 global --dry-run

The network stays LOCAL, and the output ends with "dry run, nothing changed".

2. Advertise the network¶

When the dry run passes, advertise it for real. The flow runs the checks again, writes the T1 static route, and turns masquerade off, since the VMs now use their own IPs:

❯ zcli zpod network routing zpod_name wld01 global

The network is now GLOBAL, with masquerade off. Its subnet appears in the zPod's T1 routes and is reachable from the rest of the lab.

3. Withdraw it when you are done¶

When nothing outside the zPod needs the network any more, for example once the test is over, withdraw it. This removes the route and frees the subnet for other labs:

❯ zcli zpod network routing zpod_name wld01 local

The network is back to LOCAL, but masquerade stays off, so its VMs have no egress. As the output reminds you, turn masquerade on again if they still need to reach out.

What the flow checks and does¶

Before it advertises a network with global, the flow checks that:

• the VLAN is up on zcore;
• the subnet is a unicast subnet between /8 and /30;
• the subnet overlaps nothing the fabric already routes. That covers the T0 routing table of the zPod's endpoint, every T1 static route of every zPod, every segment subnet, and every user network in the database.

It prints the full inventory before each verdict. It then writes a T1 static route <zpod>-<network> with zcore as the next hop, waits for NSX to realize it, and turns masquerade off. The checks and the write hold the engine's NSX lock, so no deploy or destroy can change the inventory in between. The run also writes a markdown artifact, advertisement-<zpod>-<network>, with the check table and the inventories. You can read it in the Prefect UI.

local deletes that route, and only if zPodFactory wrote it. If any step fails, the network goes back to its previous routing.

• Moving a network back to local leaves it without egress. Turn masquerade on again if you need it.
• When a zPod is destroyed, its user networks are set back to local with masquerade off.

Errors you may see¶

Using the network in a nested lab¶

Once the VLAN exists, use its id on nested ESXi portgroups or VM NICs, and use the gateway address on the VMs. VMs on a user VLAN should use zcore's management address as their DNS server. You can add records for hosts on the subnet with zcli zpod dns add. See Manage DNS records.

In zpodweb¶

zpodweb 0.2.0 shows the same networks on the zPod detail page. The screenshots below are from zpodweb 0.2.0 on a test zPod; click one to zoom in.

Networks card¶

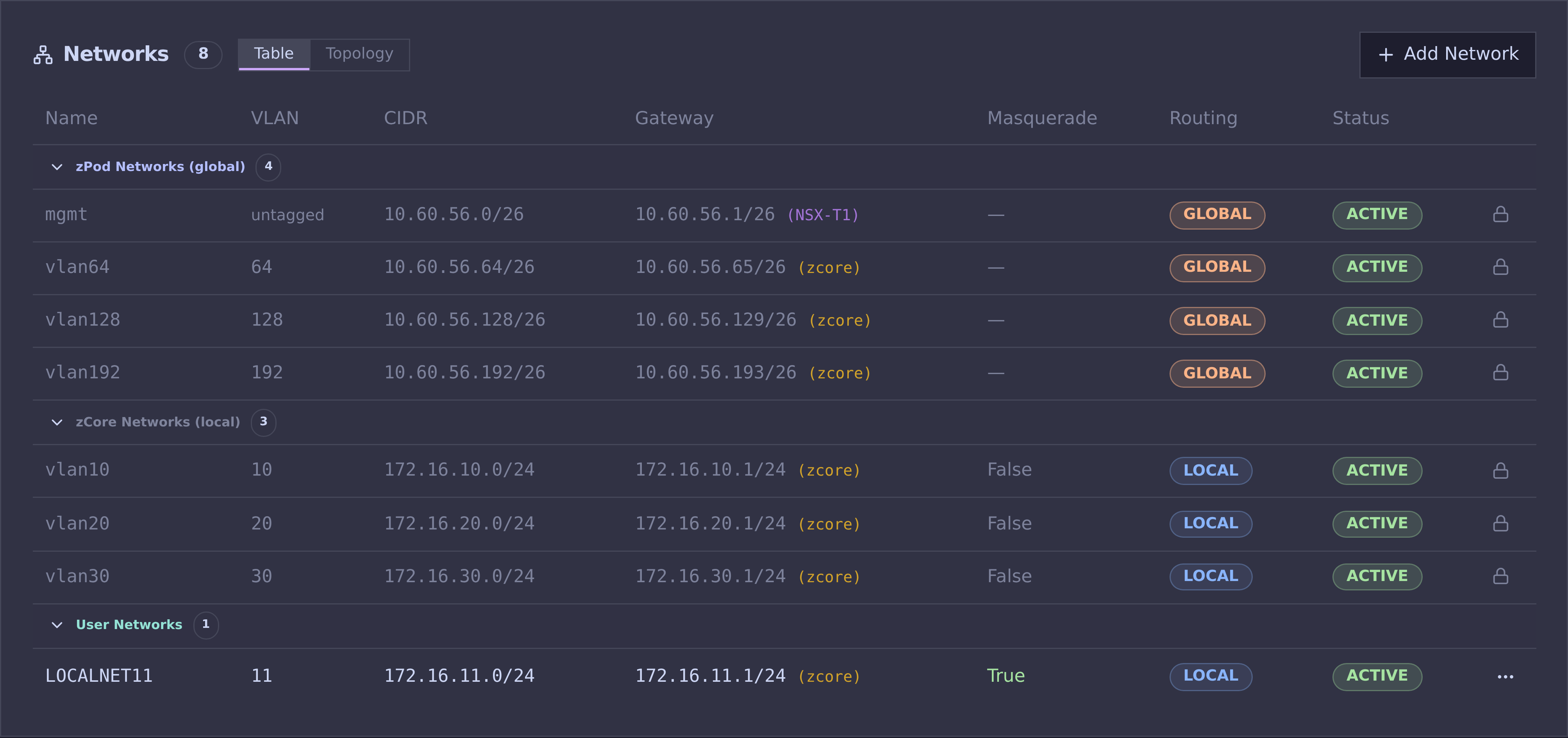

Every network on zcore with its live status, grouped by kind: the zPod's own networks (routed globally), zcore's VLANs for nested VCF, and your user networks. Each group folds from its header, and zpodweb remembers which groups you folded.

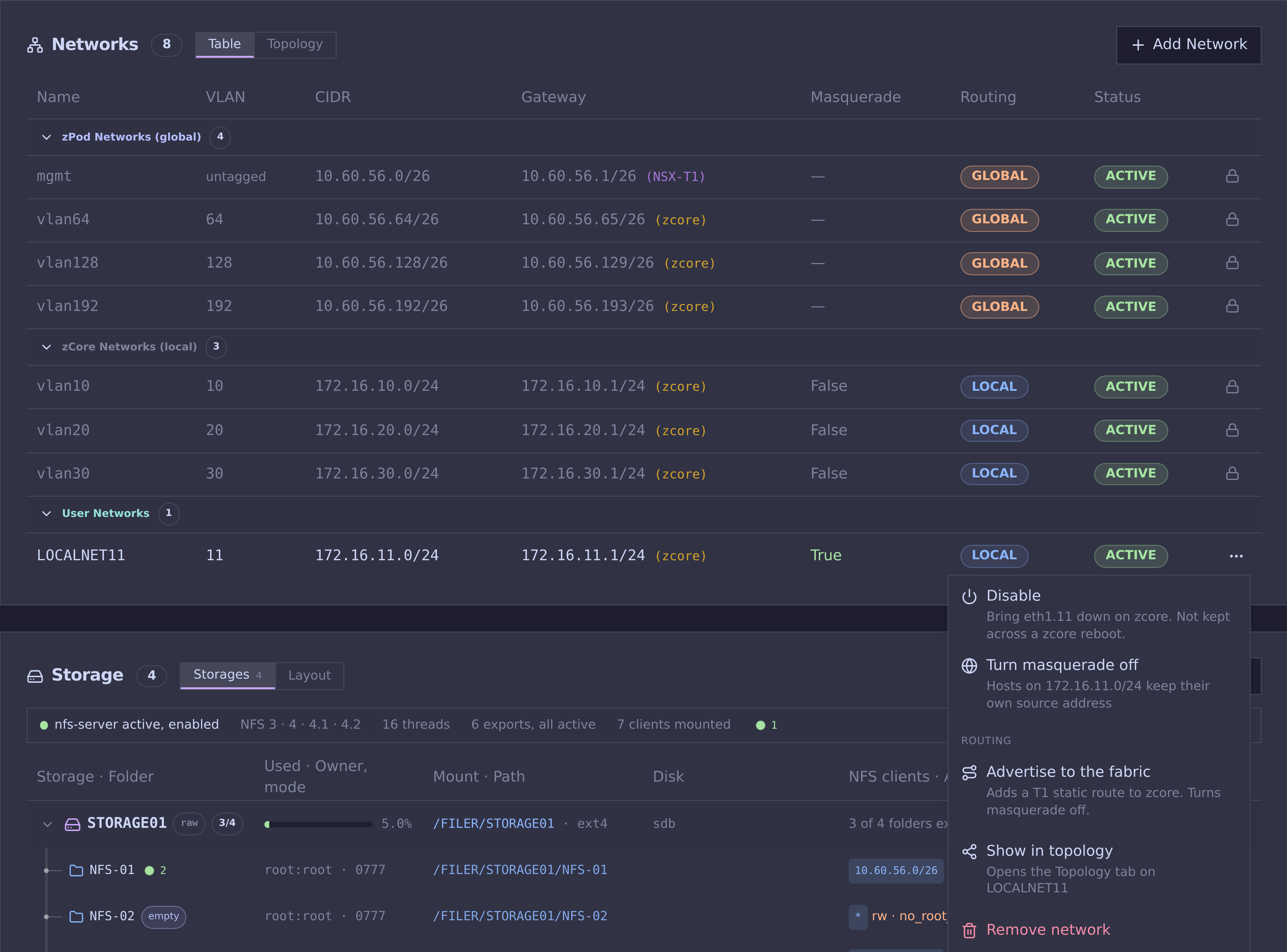

A user network's menu offers enable or disable, masquerade on or off, routing (superadmin only), a shortcut to the Topology tab, and removal:

Add a network¶

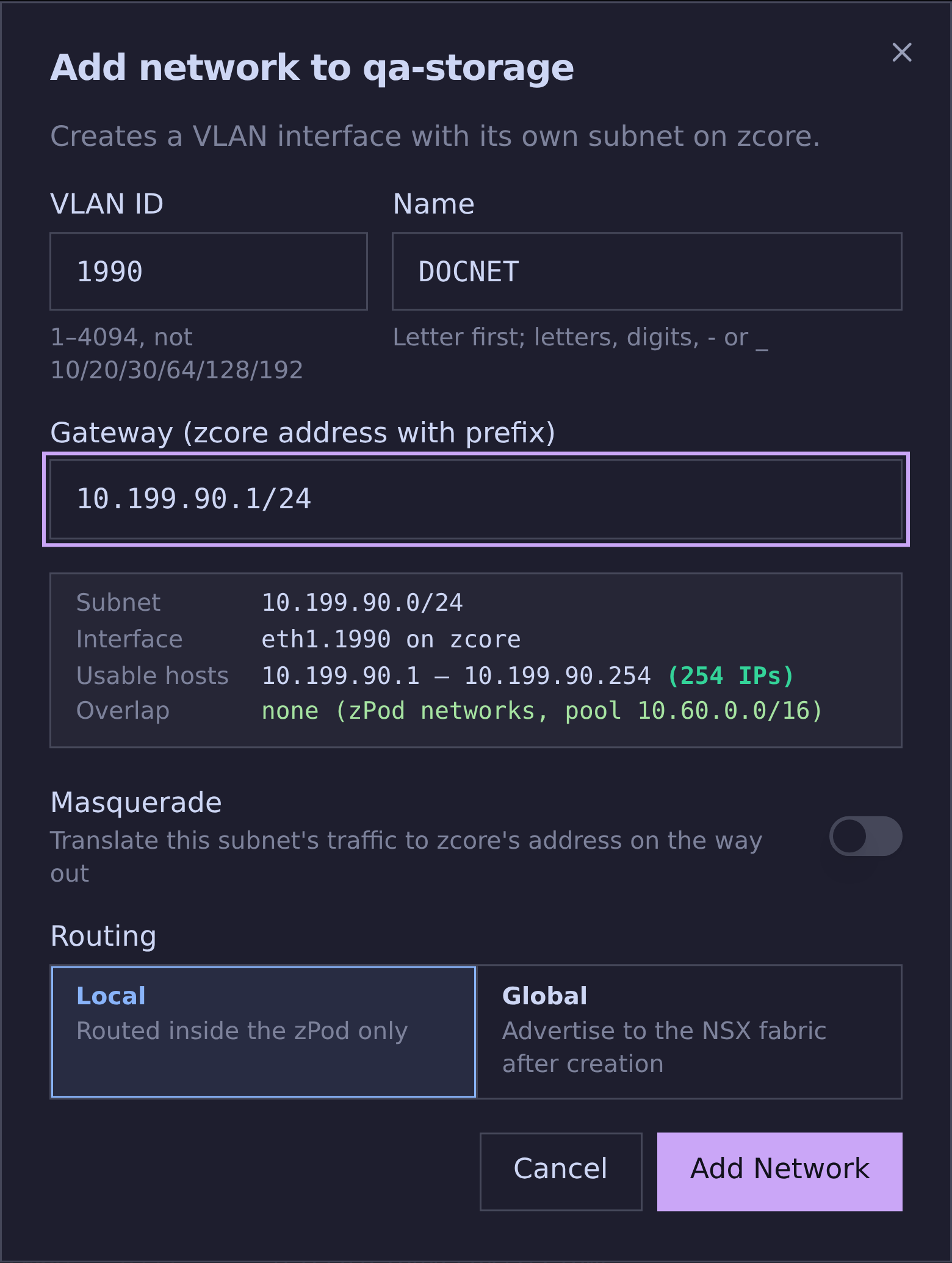

The dialog derives the subnet, the interface on zcore and the usable range from the gateway, and checks reserved VLANs, duplicates and overlaps with the zPod's networks and the endpoint pool before anything is sent.

Advertise to the fabric¶

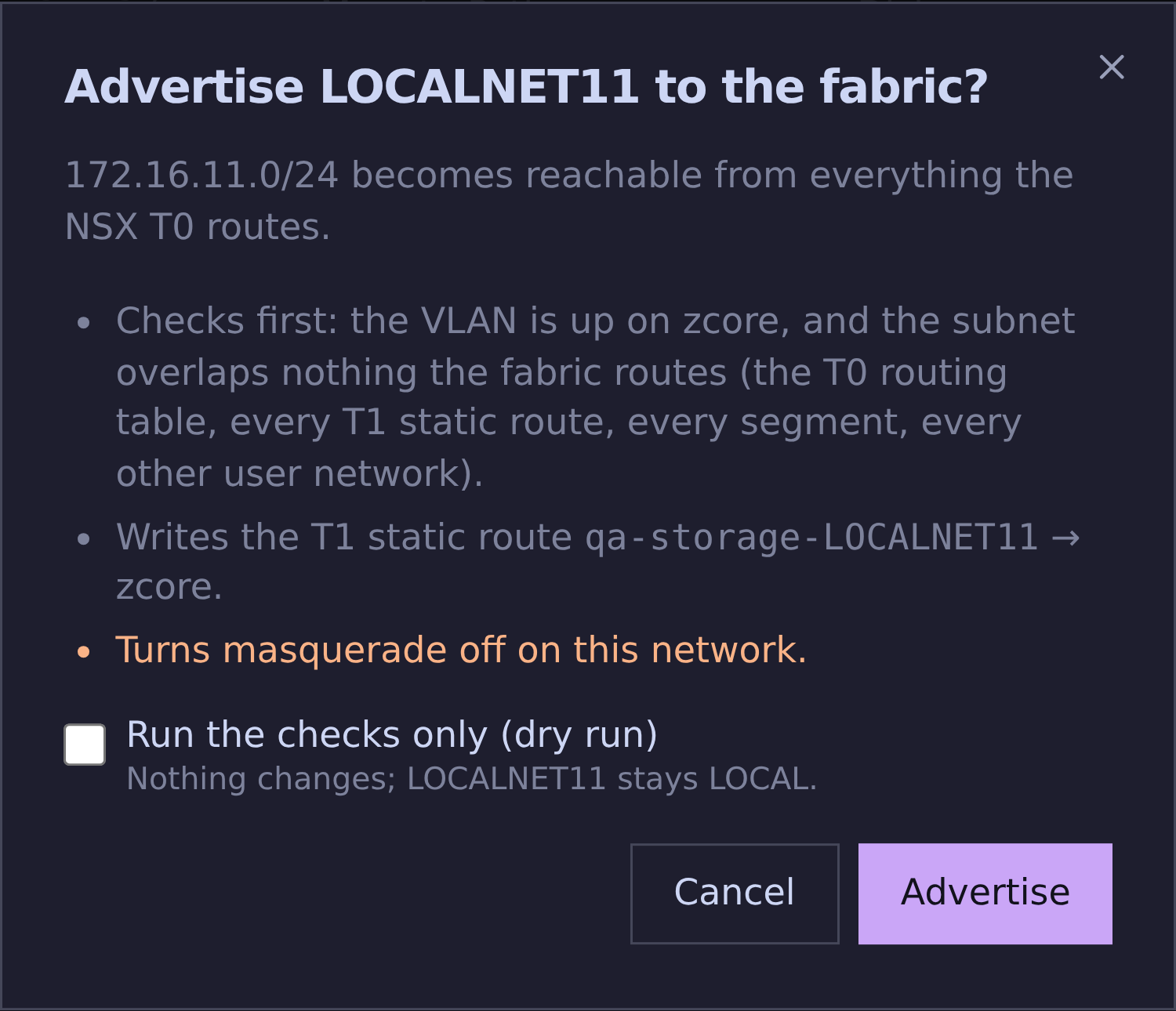

A superadmin advertises a network, or withdraws it. The dialog says what the run checks and changes, offers a dry run, then follows the zPod Engine run to its verdict, with the failing check shown when it fails.

Topology tab¶

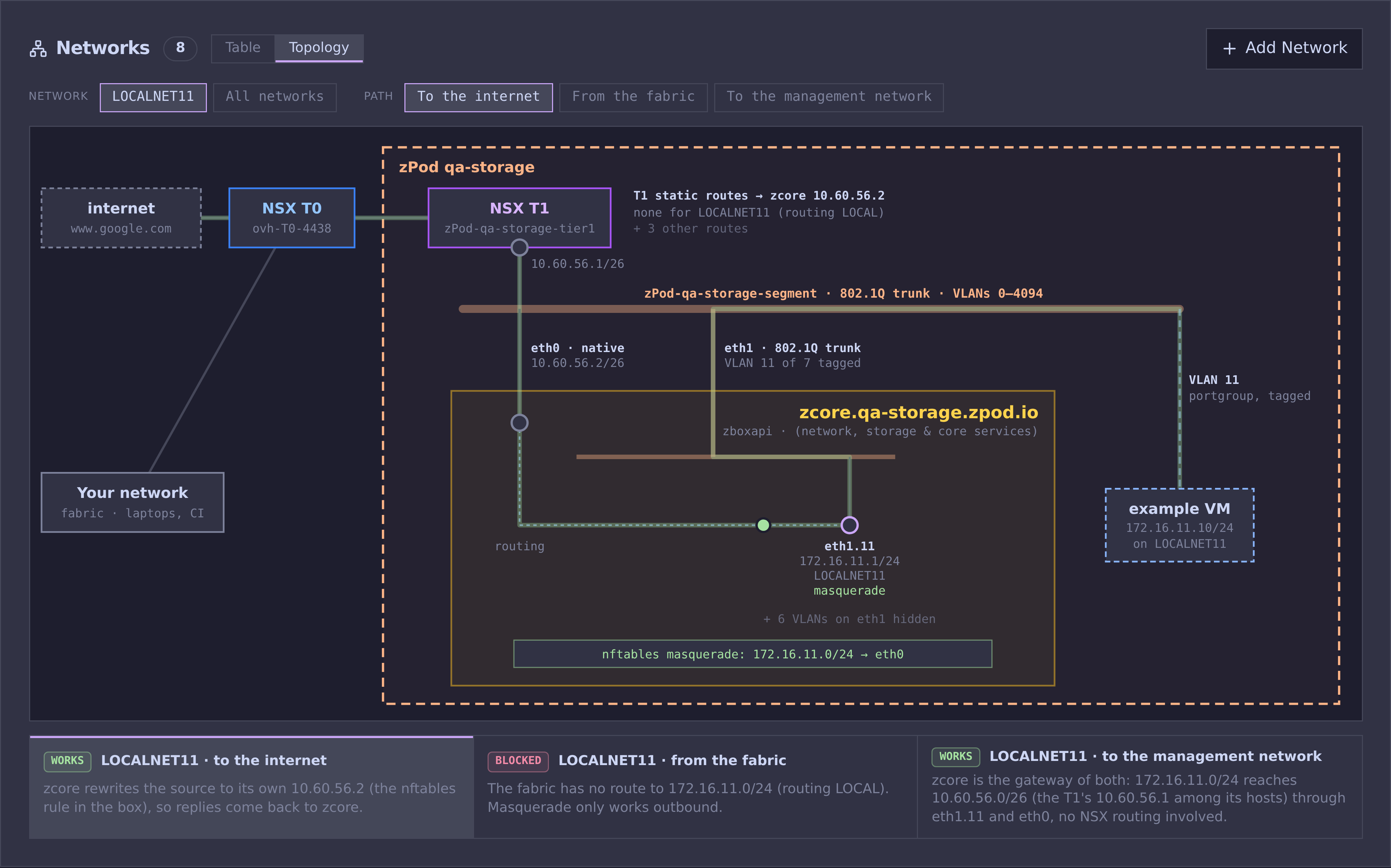

The Networks card's Topology tab draws zcore and everything upstream of it. Pick a user network and a path (to the internet, from the fabric, to the management network) to see the packet's way, with a verdict on why it works or is blocked. The tab, network and path are in the page URL, so a link opens the same view.

Network Topology card¶

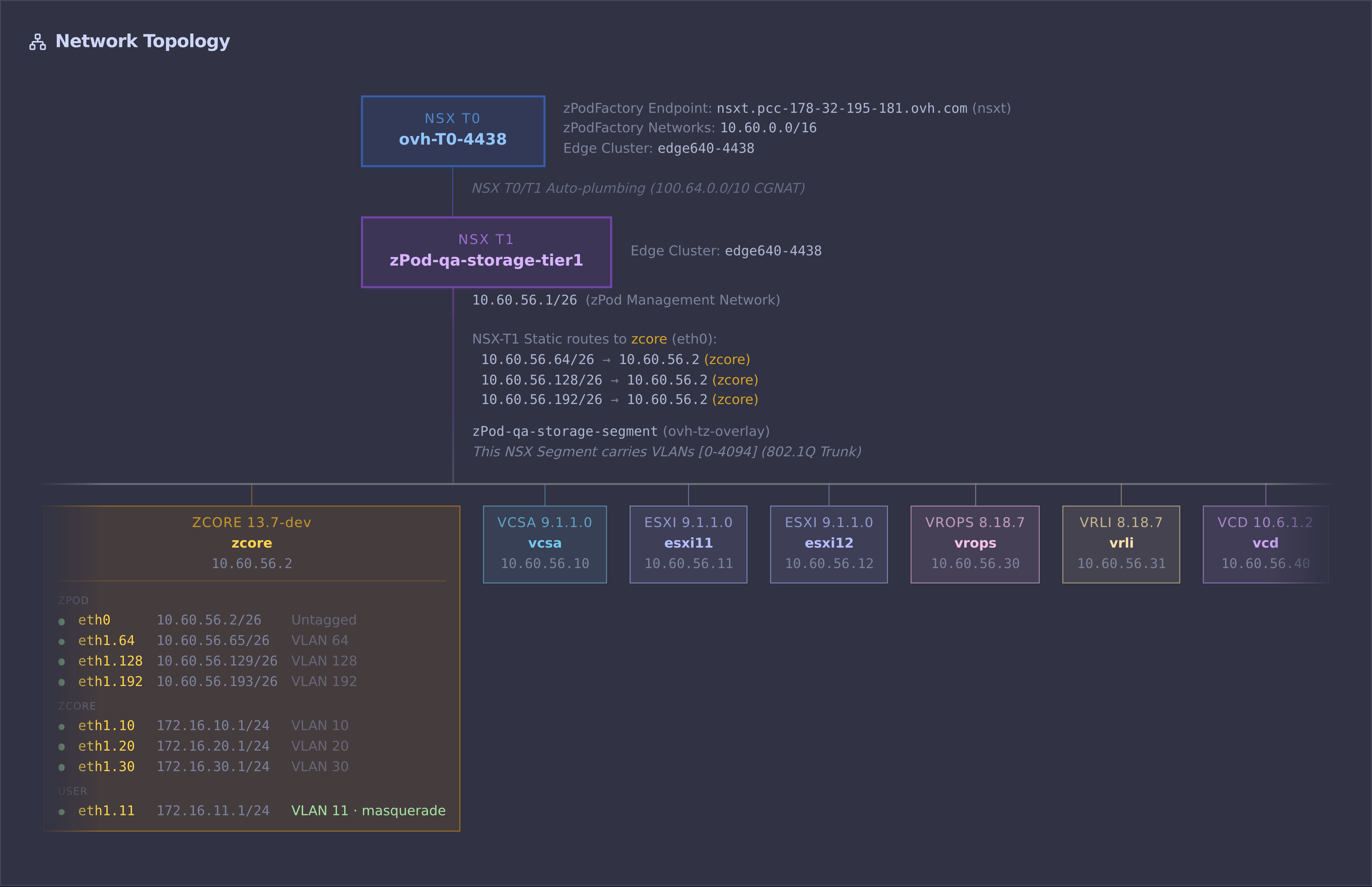

The zcore box lists every interface grouped by kind with a live status dot, and the T1 static routes include the user networks that are advertised.
